Overview

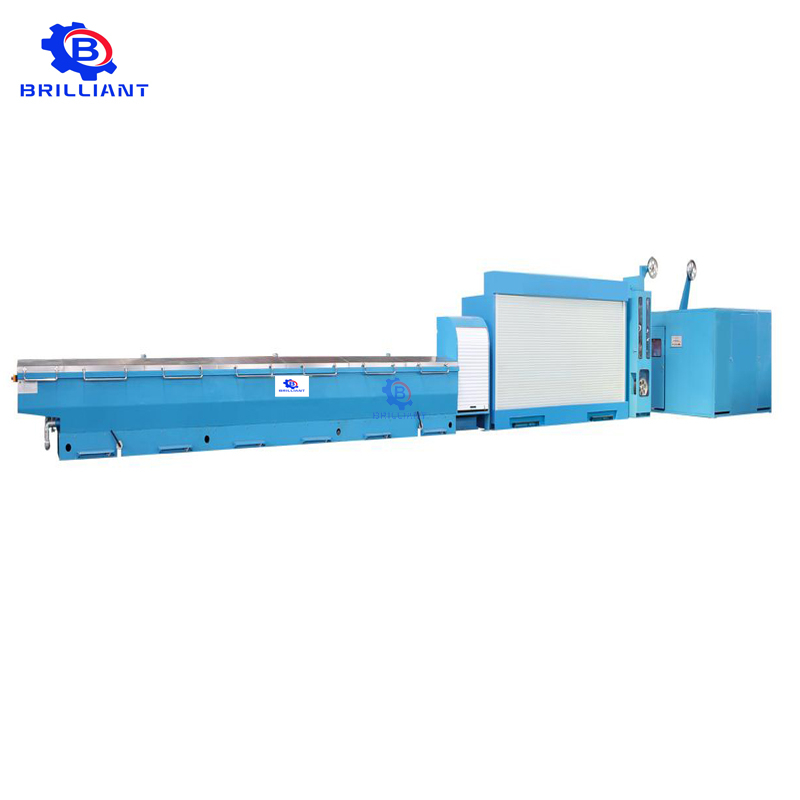

Product name: | High Speed Copper Rod Breakdown Machine with Annealing+Dual Spool Take up |
Supply type: | Make-to-Order |
Suitbale raw material: | 8mm copper rod |
Application | It is used to drawing copper wire from 8mm to 1.2-4mm fine copper. |
Color: | Blue |
MOQ: | 1set |
Delivery time: | 90Working days after receiving the deposit |
Place of Delivery: | Shanghai Port |
Trade Term: | FOB/CFR/CIF/LC |
Term of Payment: | 30%deposit,the rest by T/T before shipping |
Packing: | 1. in PE non-shrinking polybag 2. Export wooden base or case packing |
Feature: | 1. Ironed cast. 2. Horizontal structure, duaI driving motors, owning rapid die change system. 3. High precision gear transmission, high efficiency, low noise. 4. Fully immersed way to lubricate and cool, which can guarantee the quality of drawing wire. 5. Annealing device is inclined, which is convenient for workers to cross wire. Special designed air pipe to send air to the axis of annealing wheel. |
Detailed picture:

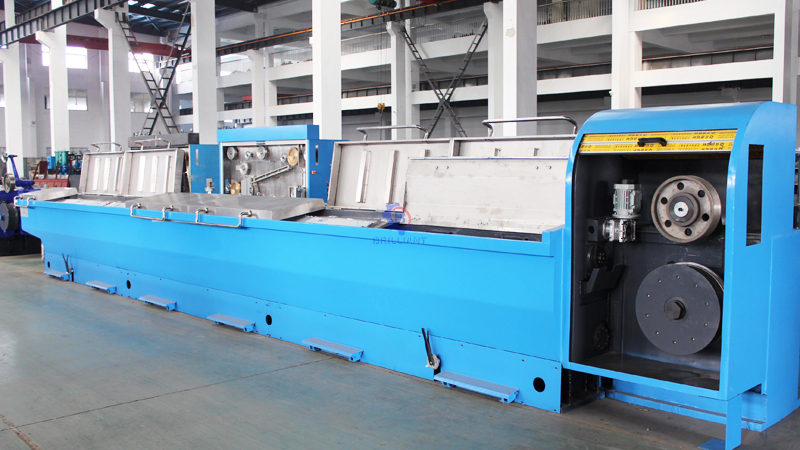

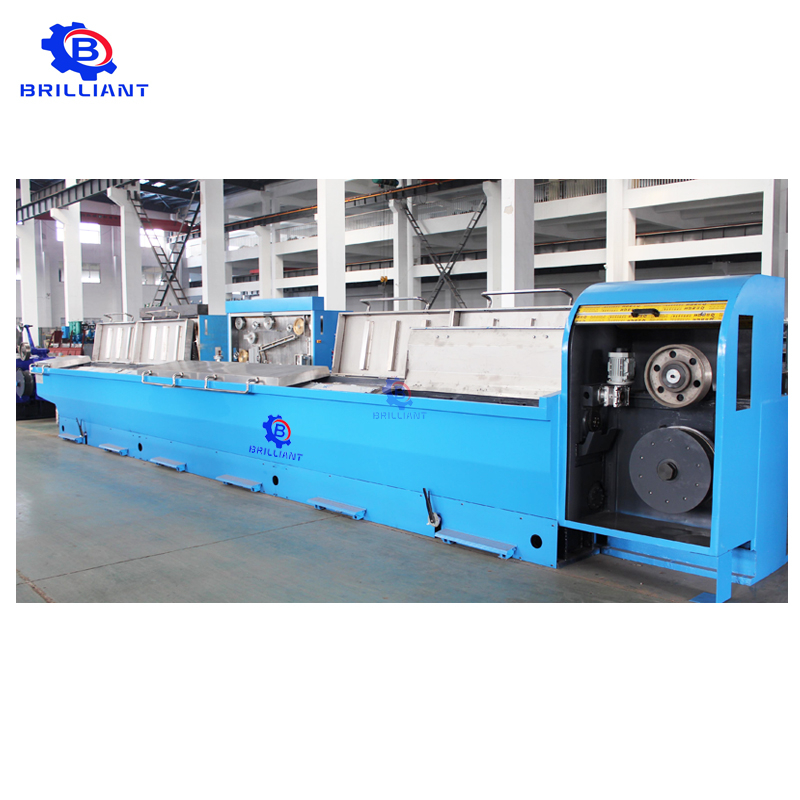

Drawing

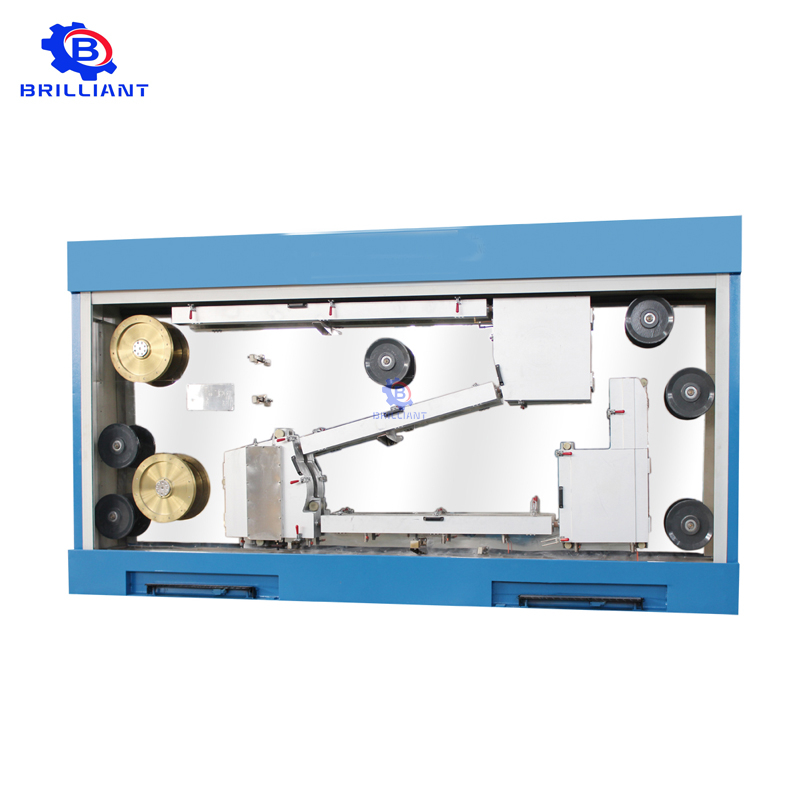

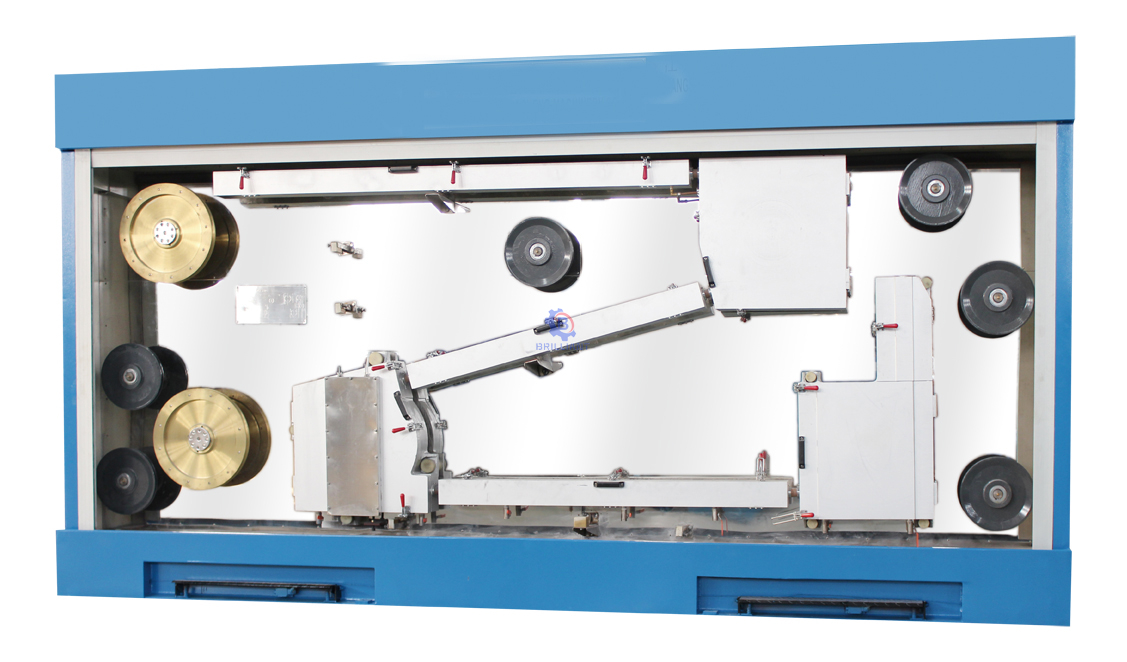

Annealing
Tension

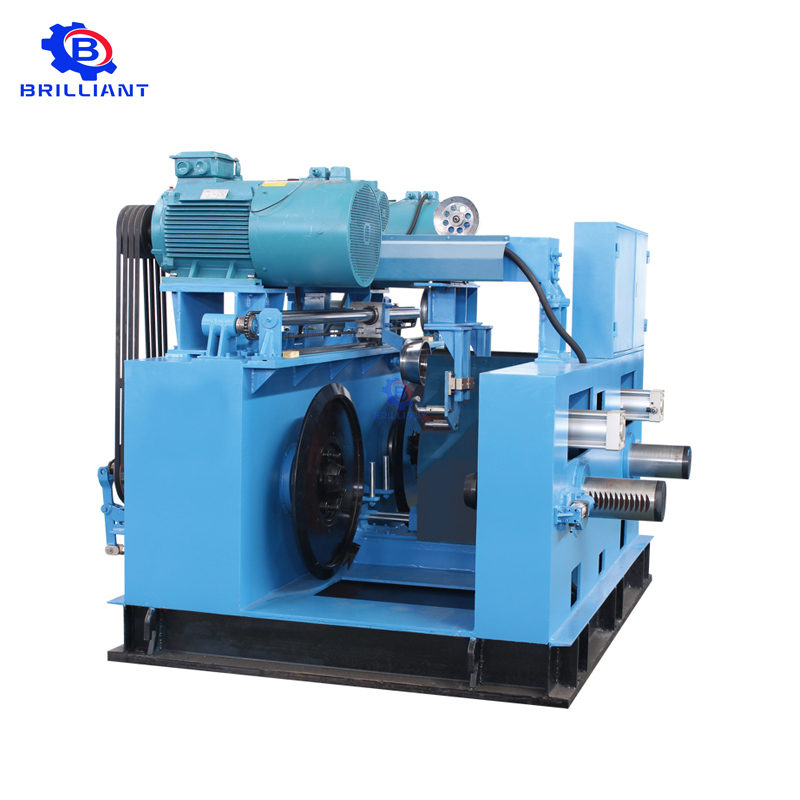

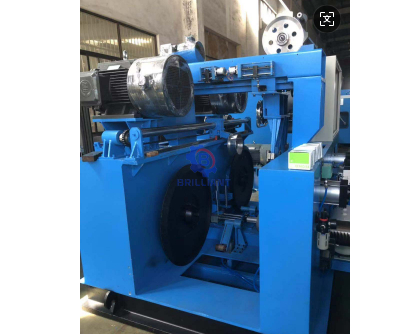

Take-up system | Machine Type | LHT450/13 | LHT450/11 | LHT450/9 |
| Max.Inlet Dia. (mm) | Ф8 | ||
| Outlet Dia. ( mm ) | Ф1.2~Ф3.5（4.0） | Ф1.5~Ф3.5（4.0） | Ф2.1~Ф3.5（4.0） |
| Max.Die No. | 13 | 11 | 9 |
| Max.line speed (M/S） | 25 | 22 | 20 |
| Body structure | Ironed cast | ||
| Transmission type | By high precision grinding gear | ||
| Fix speed capstan Dia.(mm) | Φ450 | ||
| Drawing drum | Coated by tungsten | ||
| Main motor power (KW) | 280 | ||
| Fix speed capstan motor (KW) | 75 | ||
| Lubrication type | Immersion | ||
| Optional equipment | 1. (450Tcontinuous annealing device) | ||
| 2. (Double take-up) | |||
| 3. (Coiler) | |||
| 4. WS-1000 Compact take-up | |||
| Online continuous annealer | |||
| Type | 450T | ||
| Machine structure | （horizontal type） | ||
| Annealing wheel Dia. (mm) | Φ450 | ||
| Annealing wire dia. (mm) | Φ1.2~3.5 | ||
| Annealing protection type | steam or nitrogen | ||
| Annealing voltage | 0~65V | ||
| Annealing current | 0~6000A | ||
