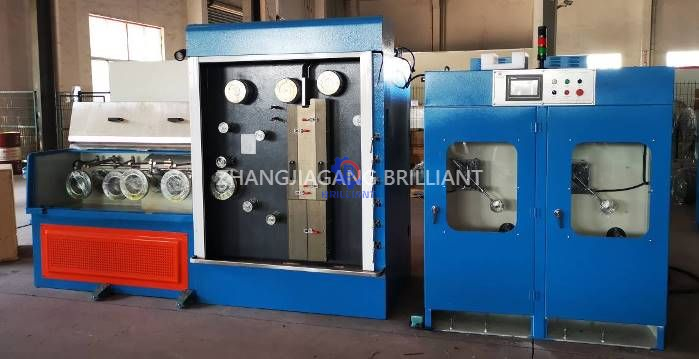

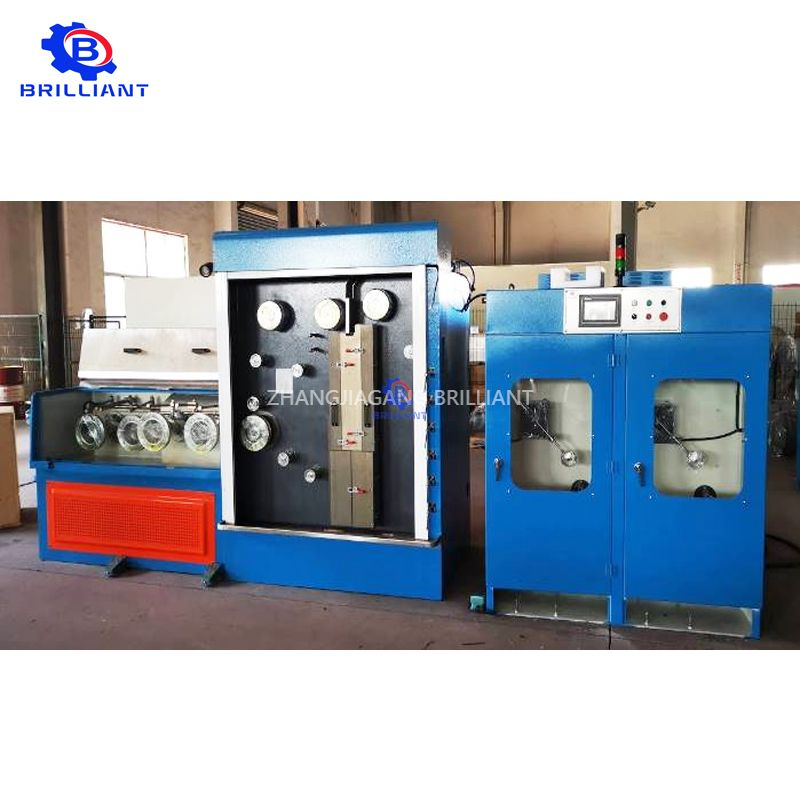

DT22.2 Two Fine Copper Wire Drawing Machine with Online Annealing( Dual SpoolTake Up)

Supply type:

Make-to-Order

Suitbale raw material:

2 fine copper wire

Application

 It is used to drawing 2 copper wires from 1.0-1.2mm to 0.15-0.4mm fine copper.

Color:

Blue

MOQ:

1set

Delivery time:

60Working days after receiving the deposit

Place of Delivery:

Shanghai Port

Trade Term:

FOB/CFR/CIF/LC

Term of Payment:

30%deposit,the rest by T/T before shipping

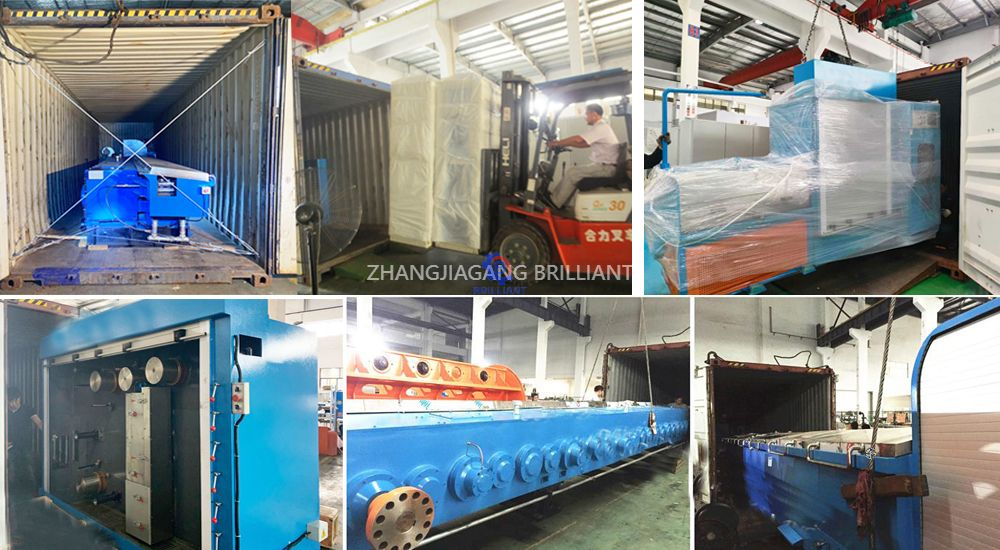

Packing:

1. in PE non-shrinking polybag

2. Export wooden base or case packing

Feature:

The device is connected behind the wire drawing machine and is driven by an independent motor to automatically track the speed of the drawing machine; The annealing voltage adopts fully digital control and automatically tracks the drawing machine speed, and can be adjusted separately.

Maximum Eye Modulus

2*22

Inlet wire diameter

2*Φ0.6mm—Φ1.38mm

Outlet diameter

2*Φ0.12mm—Φ0.45mm

Maximum wire speed

MAX1800m/min

Mechanical surface reduction rate

15%

Fixed speed wheel reduction rate

8%

Main machine body structure

Steel plate welding and tempering

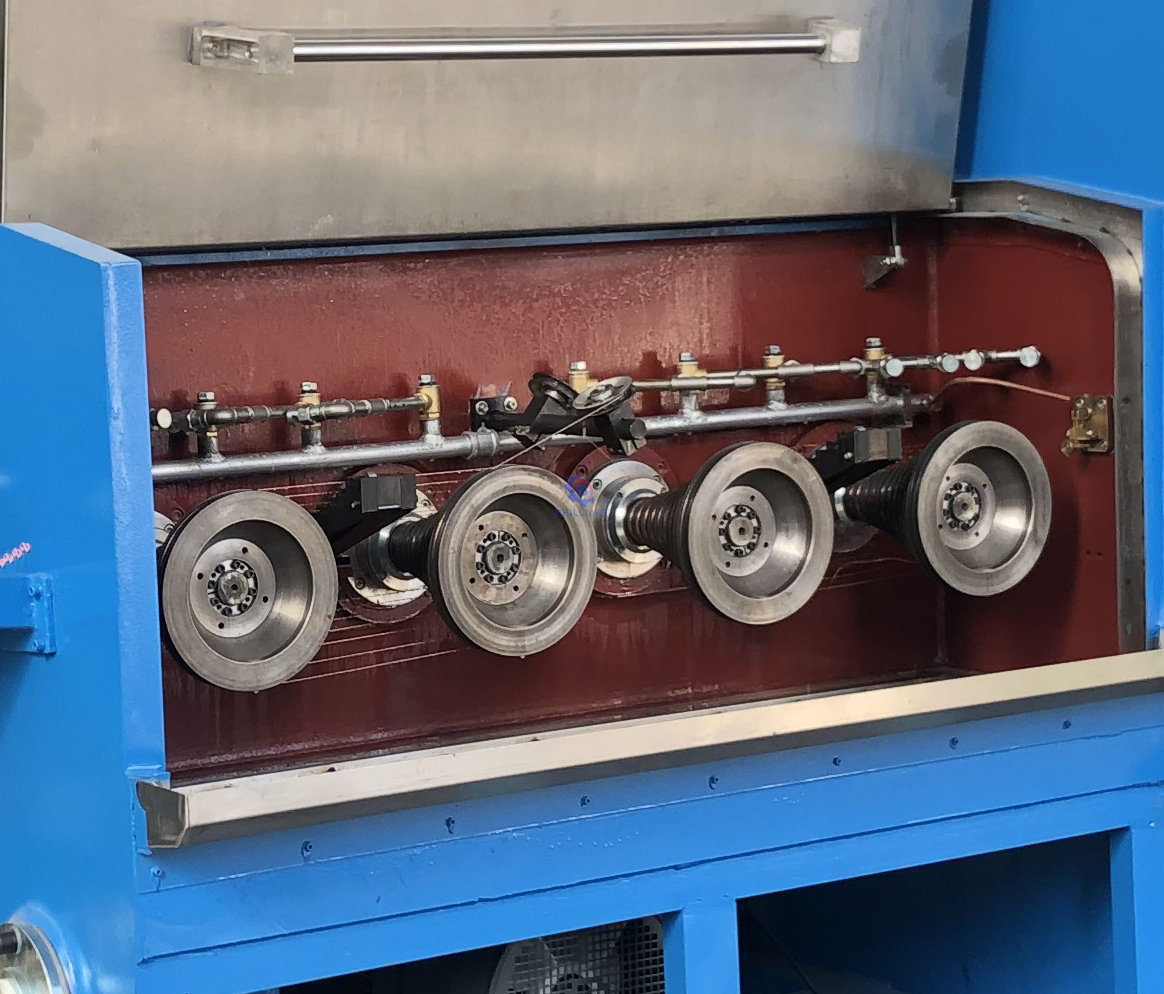

Capstan

Porcelain spraying

Main drawing power

30KW

Take up power

2*4KW

Fixed speed wheel diameter

Φ206mm

Annealing wheel diameter

Φ160mm

annealing voltage

DC0~65V

Annealing current

DC0～300A

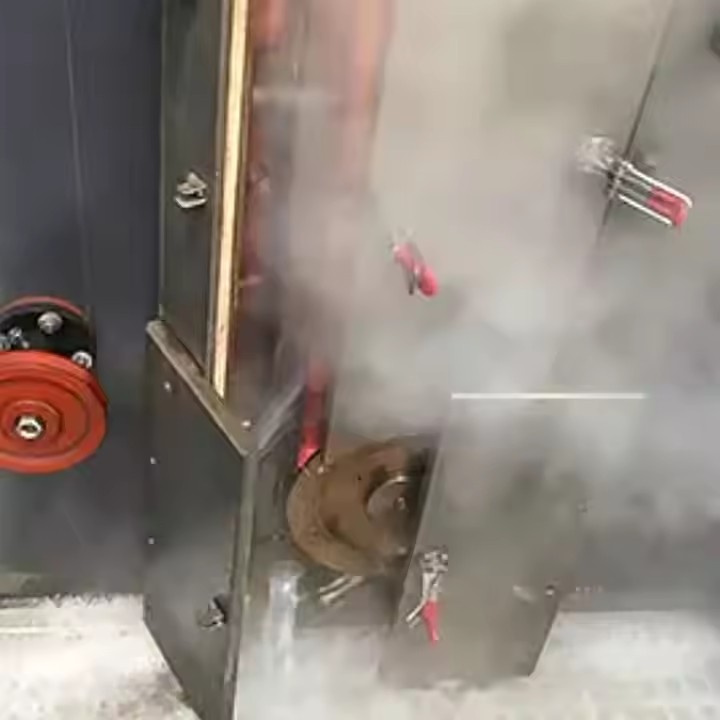

Annealing protection method

Steam or Nitrogen

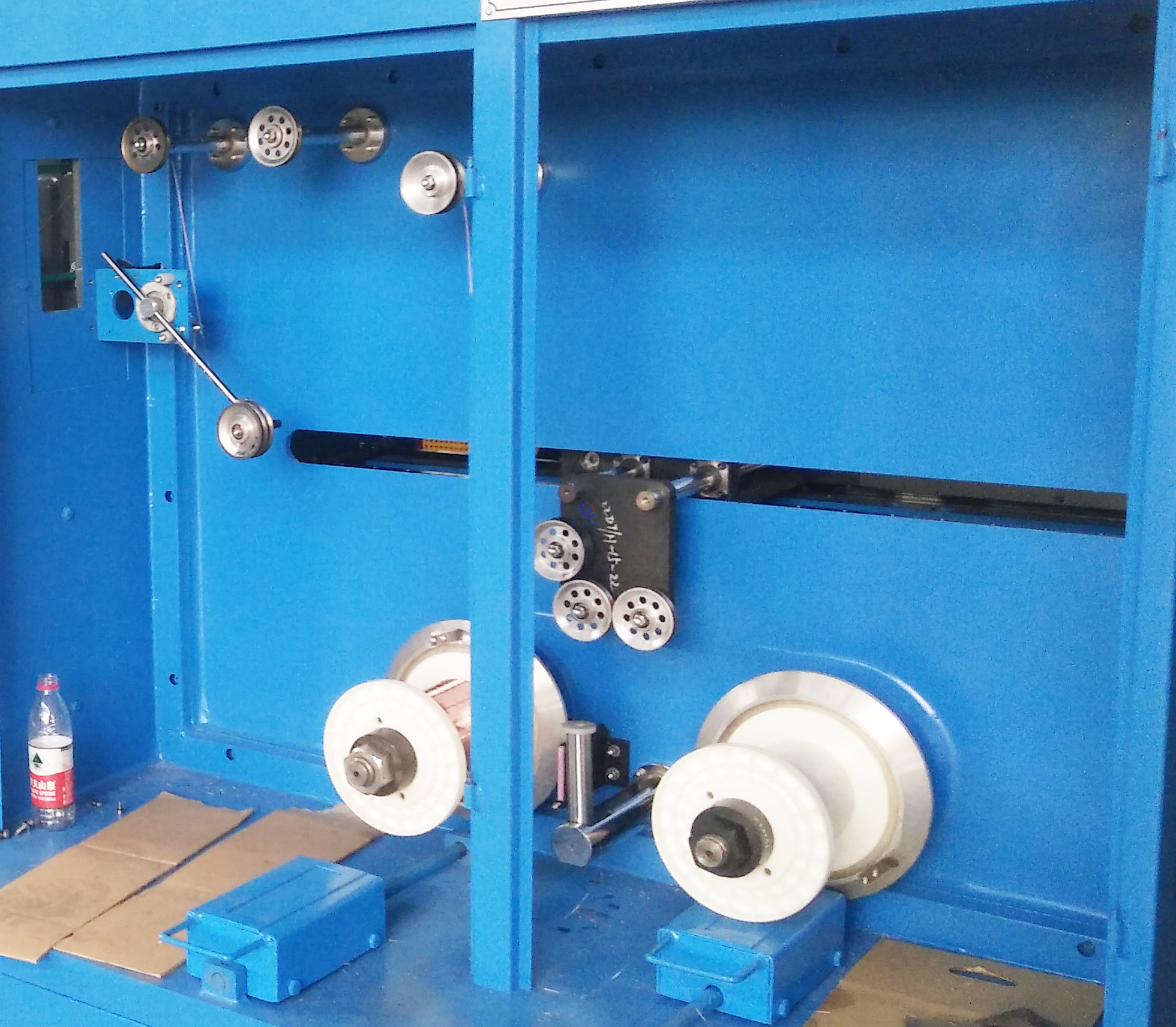

Take up shaft size

Φ300mm  or according to client

Take up method

Top screw pressing type

Traverse method

Independent motor forward and reverse control

Transmission mode

Belt drive

Take up control

PID position change detection automatic control

Displacement detection device

Swing arm

Tension control

Counter Weight

Max loading weight

2*50KG

Lubrication method for extension line

Spray

Brake

Electromagnetic brake

Voltage

380V 50HZ

Drawing oil volume

100 Liters per minute

Machine weight

4900KG
