Overview

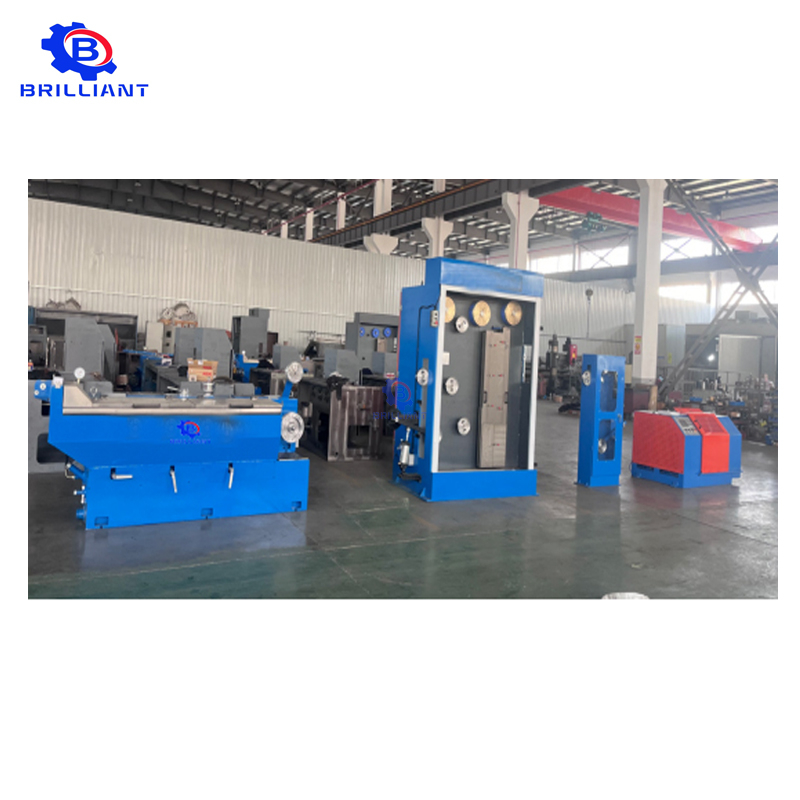

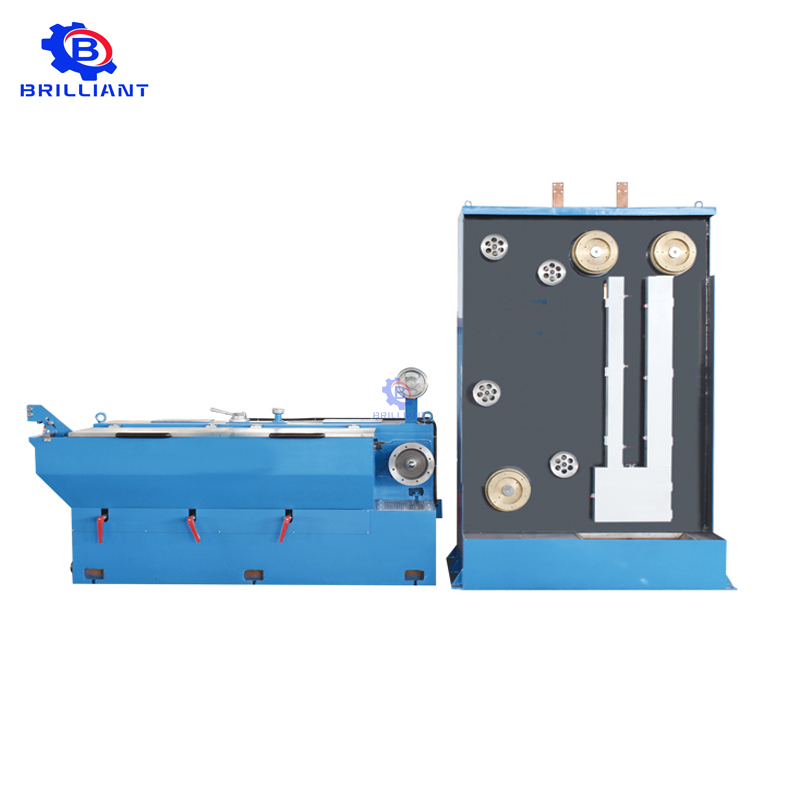

Product name: | High Speed Intermediate Copper Wire Drawing Machine with Annealing |
Supply type: | Make-to-Order |
Suitbale raw material: | intermediate copper wire |
Application | It is used to drawing copper wire from 2.5-3.0mm to 0.4-1.6mm fine copper. |
Color: | Blue |
MOQ: | 1set |
Delivery time: | 60Working days after receiving the deposit |
Place of Delivery: | Shanghai Port |
Trade Term: | FOB/CFR/CIF/LC |
Term of Payment: | 30%deposit,the rest by T/T before shipping |
Packing: | 1. in PE non-shrinking polybag 2. Export wooden base or case packing |
Feature: | Main feature: 1. lroned cast. 2.Double inverter control, tension auto adjusting. 3.Transmission by high precision gear. 4.Fully immersed lubrication, separated with gear box. 5.Suitable for take up machine with and without shaft,coiler machine. |
Detailed picture:

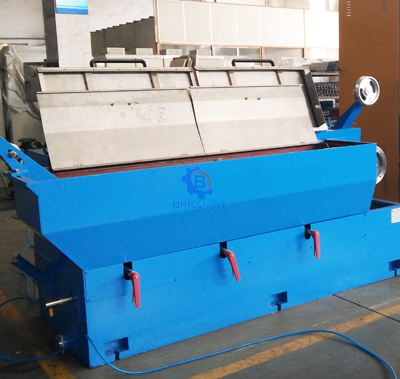

Drawing

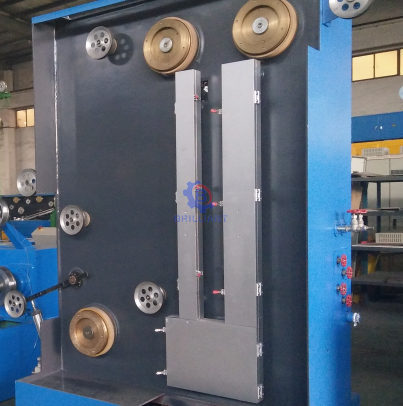

Annealing
Tension

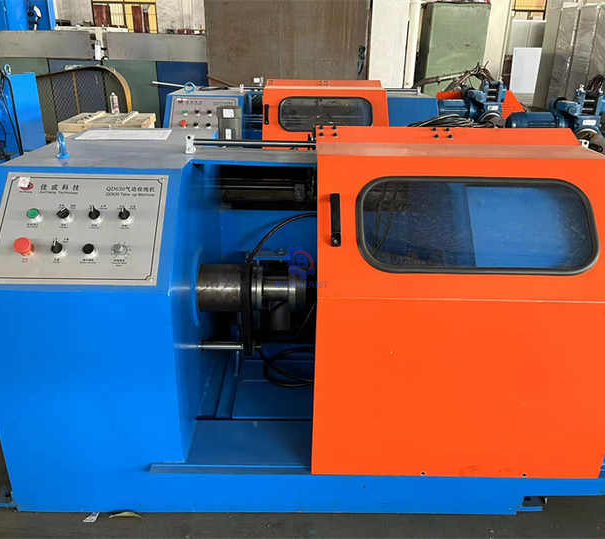

Take-up system | Machine type | 13DHT | 9DHT | 17DHT | 17DT |
| Max.Inlet Dia.(mm) | Ф3.5 | |||
| Outlet Dia. ( mm ) | Ф0.65~Ф2.8 | Ф1.2~Ф2.8 | Ф0.4~Ф1.6 | Ф0.4~Ф1.2 |
| Max.Die No. | 13 | 9 | 17 | 17 |
| Max.line speed (M/Min） | 2000 | 1200 | 1800 | 1200 |
| Body structure | Ironed cast | |||
| Slip ratio of machine | 20% | 18% | 20% | 18% |
| Fix speed capstan Dia.(mm) | 280 | 300 | 250 | |
| Transmission type | By high precision grinding gear | By Chain | ||
| Main motor power (KW) | 55 (45) | 37 | ||
| Take-up motor power (KW) | 11 (15) | 11 | ||
| Lubrication type | Full Immersion | |||
| Take-up bobbin size (mm) | Φ500/Φ630 （ Bore is Φ127mm) or changed by requirement | |||
| Optional equipment | Continuous annealing device | |||
| Coiler | ||||
