What Is The Details Founction of Yarn Winding Machine with Meter Counter

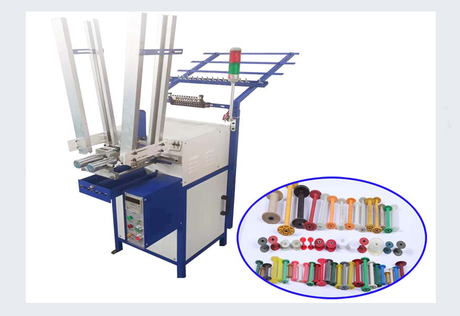

A Yarn Winding Machine with Meter Counter is a specialized piece of equipment used in the textile industry to wind yarn onto bobbins, cones, or spools. The inclusion of a meter counter adds a critical feature for precise measurement and control of the yarn length during the winding process. Below is a detailed explanation of its functions and features:

Key Functions of a Yarn Winding Machine with Meter Counter

1.Yarn Winding:

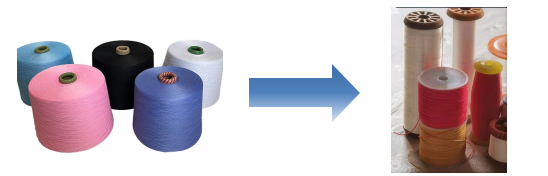

• The primary function is to wind yarn from a larger package (e.g., hanks, skeins) onto smaller, more manageable bobbins, cones, or spools.

• Ensures even and consistent winding, which is crucial for downstream processes like weaving, knitting, or dyeing.

2.Meter Counter:

• Ensuring uniformity in yarn length across multiple packages.

• Meeting specific production requirements for consistent fabric quality.

• Reducing waste by accurately controlling the amount of yarn used.

• The meter counter measures the exact length of yarn wound onto each bobbin or spool.

• This feature is essential for:

3.Tension Control:

• Maintains consistent tension during the winding process to prevent yarn breakage or uneven winding.

• Adjustable tension settings allow for customization based on yarn type and thickness.

4.Speed Control:

• Allows operators to adjust the winding speed to suit different yarn types and production needs.

• Higher speeds for thicker yarns, lower speeds for delicate or fine yarns.

5.Automatic Stop Function:

• The machine can automatically stop when the desired yarn length (measured by the meter counter) is reached.

• Prevents over-winding and ensures precision.

6.Yarn Clearing:

• Some advanced models include a yarn clearing system to detect and remove defects (e.g., slubs, knots) during the winding process.

• Improves the overall quality of the wound yarn.

7.Bobbin/Spool Changing:

• Automatic or semi-automatic bobbin changing systems reduce downtime and increase efficiency.

• Ensures continuous operation without manual intervention.

8.User-Friendly Interface:

• Modern machines come with digital displays and controls for easy operation.

• Operators can set parameters like yarn length, winding speed, and tension with precision.

Applications of Yarn Winding Machines with Meter Counter

• Textile Manufacturing: Used in spinning mills, weaving units, and knitting factories.

• Dyeing and Finishing: Ensures uniform yarn packages for consistent dyeing results.

• Handicrafts and Small-Scale Production: Ideal for small businesses or artisans who need precise yarn measurements.

Advantages of Using a Yarn Winding Machine with Meter Counter

1. Precision: The meter counter ensures accurate yarn length, reducing material waste.

2. Efficiency: Automated features like tension control and automatic stop save time and labor.

3. Quality: Consistent winding and defect detection improve the final product quality.

4. Versatility: Can handle various yarn types, including cotton, polyester, nylon, and blended fibers.

5. Cost-Effective: Reduces operational costs by minimizing yarn waste and downtime.

Technical Specifications (Example)

• Winding Speed: 500–1500 meters per minute (adjustable).

• Yarn Count Range: 10–100 Ne (can vary by model).

• Meter Counter Accuracy: ±0.5% or better.

• Bobbin/Spool Capacity: 6–12 bobbins (depending on model).

• Power Supply: 220V/380V, 50/60 Hz.

• Dimensions: Varies by model (typically compact for easy installation).

How to Operate

1. Set Parameters: Input the desired yarn length, winding speed, and tension settings.

2. Load Yarn: Place the yarn package on the creel and thread it through the tensioner and guide.

3. Start Winding: Begin the winding process; the meter counter will track the yarn length.

4. Monitor and Adjust: Use the digital interface to monitor progress and make adjustments if needed.

5. Automatic Stop: The machine will stop automatically when the set yarn length is reached.

6. Unload and Repeat: Remove the wound bobbin and repeat the process for the next package.

Maintenance Tips

• Regularly clean the machine to prevent dust and lint buildup.

• Lubricate moving parts as per the manufacturer’s guidelines.

• Inspect the meter counter and sensors for accuracy.

• Replace worn-out components (e.g., tension discs, guides) to maintain optimal performance.

If you need further details or a specific recommendation for a yarn winding machine model, feel free to ask!
