Regarding high-speed braiding machines, it does not mean that the larger the pitch, the denser the braid.

The pitch refers to the axial length of a complete spiral formed by a braided rope, and its size directly affects the density and braiding speed of the braid.

The larger the pitch, the larger the interval between the braided layers, the fewer the number of braided layers, and the relatively low density of the braid; while the smaller the pitch, the smaller the interval between the braided layers, the more the number of braided layers, and the relatively high density of the braid.

Specifically, the size of the pitch is related to the braiding speed and braiding quality. The larger the pitch, the smaller the number of braided layers per unit length, the faster the braiding speed, but the lower the density of the braid; conversely, the smaller the pitch, the denser the braid, the higher the density of the braid, but the relatively slow braiding speed. Therefore, in order to ensure the quality of the braided hose, it is usually necessary to ensure an appropriate pitch to ensure the density and quality of the braided layer.

Then How To Adjust The Pitch of Rope Braiding Machine And Rope Twisting Machine, let's go and check as bellow:

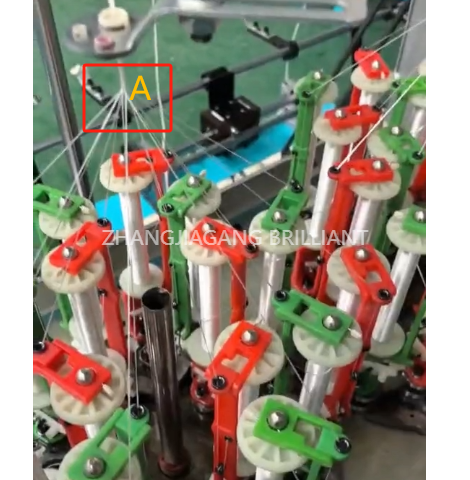

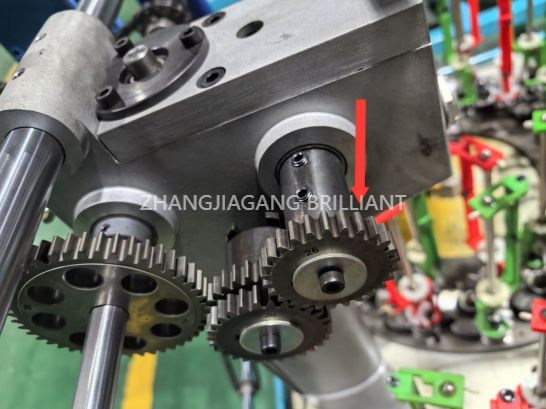

The gear is bigger, the density is more thinner, A point more higher;

The gear is smaller, the density is more Intensive, A point more lower.

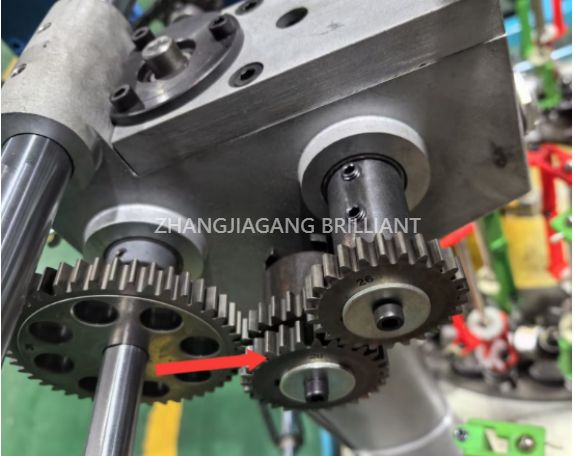

The gear is bigger, the density is more thinner, A point more higher;

The gear is smaller, the density is more Intensive, A point more lower.

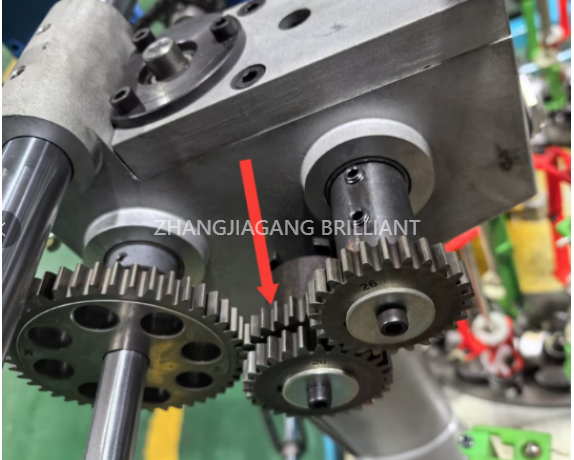

The gear is bigger, the density is more thinner, A point more higher;

The gear is smaller, the density is more Intensive, A point more lower.
