What Is The Story Behind The Laces And Ropes Braiding That Fascinate People?

The Intricate Dance of Shuttle Cores in High-Speed Braiding Machines

High-speed braiding machines are marvels of engineering, capable of producing everything from simple shoelaces to complex multi-layered ropes like those used in climbing. At the heart of these machines lies a fascinating component: the shuttle core. Let’s dive into the mechanics of how shuttle cores move and how their intricate dance contributes to the braiding process.

1. The Movement of Shuttle Cores

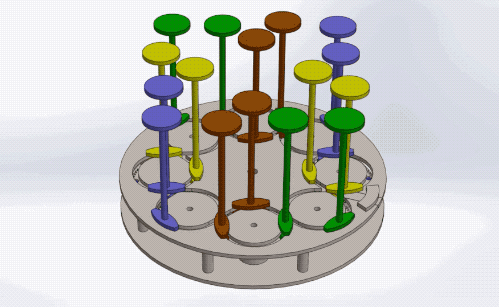

The shuttle core, a transparent component located beneath the spool, follows a unique and mesmerizing trajectory. Its movement is anything but random—it’s a carefully choreographed dance driven by gears and mechanical forces.

• Gear-Driven Motion:
  The shuttle core’s movement is powered by a series of interlocking gears. The blue arrows in the diagram indicate the rotational direction of these gears, which are controlled by an electric motor. This is the primary driving force behind the shuttle core’s motion.

• Force Analysis:

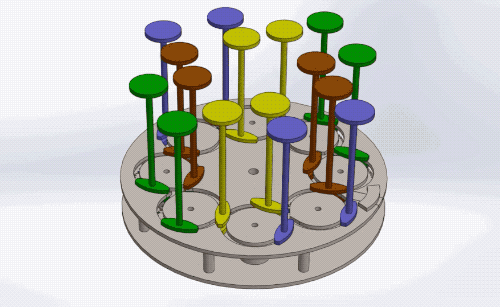

  When the shuttle core reaches the intersection of the "∞" (infinity) shaped path, it experiences a combination of forces from two gears. The red arrows represent the direction of these combined forces, which alter the shuttle core’s trajectory. By mapping out the forces at each gear interaction, we can trace the shuttle core’s path, marked by the yellow arrows, forming a closed-loop "dance."

• Slot Mechanism:

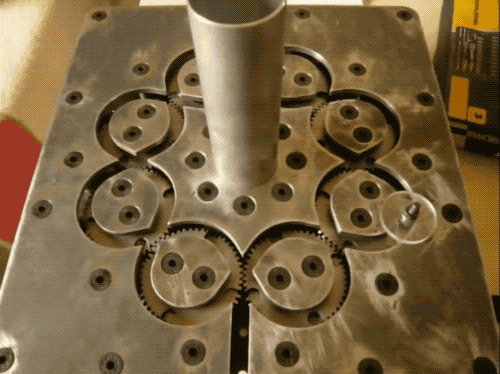

  The gear disks have grooves that hold the shuttle cores in place. As the gears rotate, they carry the shuttle cores along their grooves, creating a continuous and orderly motion. This mechanism is a variation of the Geneva drive, a type of intermittent motion mechanism.

2. From Shuttle Cores to Rope Braiding

The elegant movement of the shuttle cores isn’t just for show—it plays a critical role in the braiding process. Here’s how it works:

• Slow-Motion Braiding:

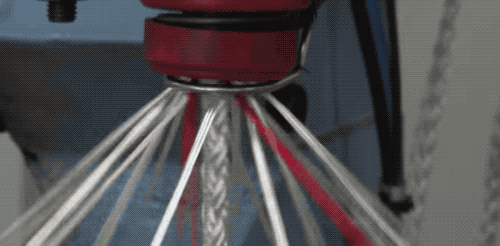

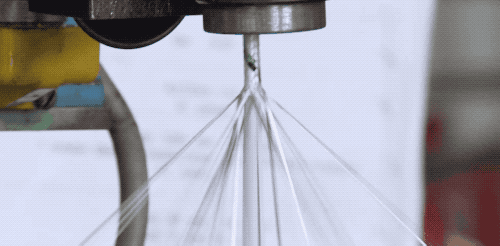

  In a slow-motion view of the braiding process, you can see the shuttle cores continuously moving in their loops. The black threads (or colored threads, in some cases) are carried along by the shuttle cores, weaving into the rope as they move upward. This process resembles the colorful friendship bracelets many of us made in school.

• Tension Control:
  As the rope is formed, it passes through tensioning wheels. These wheels ensure that the rope remains taut during the braiding process. Without proper tension, the rope would be loose and lack the desired strength and structure.

3. Versatility of the Braiding Machine

One of the most impressive features of high-speed braiding machines is their versatility. They can produce a wide range of products, from simple single-layer ropes to complex multi-layered ones.

• Single-Layer Braiding:
  Common items like shoelaces, decorative cords, and gift box ribbons are made using single-layer braiding. The process is straightforward, with threads interweaving to form a single, cohesive strand.

• Multi-Layer Braiding:
  For more demanding applications, such as climbing ropes, the machine can create multi-layered ropes. These ropes have an inner core for strength and an outer protective layer for durability. The result is a rope that is both strong and resilient, capable of withstanding extreme conditions.

4. The Science Behind the Dance

The precise movement of the shuttle cores is a testament to the ingenuity of mechanical engineering. By analyzing the forces at play and optimizing the gear interactions, engineers have created a system that is both efficient and reliable. The shuttle cores’ "dance" ensures that each thread is perfectly positioned, resulting in a tightly woven and durable rope.

5. Applications of Braided Ropes

Braided ropes are used in a wide range of industries, including:

• Outdoor Gear: Climbing ropes, parachute cords, and fishing lines.

• Fashion: Decorative cords, shoelaces, and garment accessories.

• Industrial Use: Safety ropes, cargo straps, and electrical cables.

Conclusion

The high-speed rope braiding machine is a perfect blend of art and science. The shuttle cores’ intricate movements, driven by precise gear interactions, create beautifully braided ropes that are both functional and durable. Whether it’s a simple shoelace or a complex climbing rope, the braiding machine’s versatility and efficiency make it an indispensable tool in modern manufacturing.

Next time you tie your shoes or climb a mountain, take a moment to appreciate the engineering marvel behind the ropes that make it all possible!
