500,630,800
Brilliant
Overview

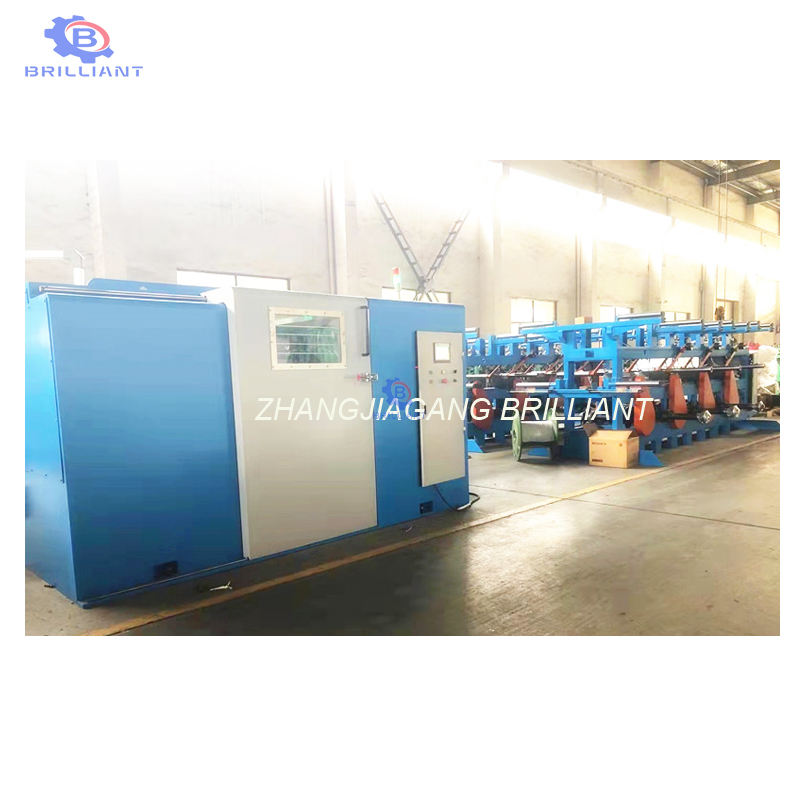

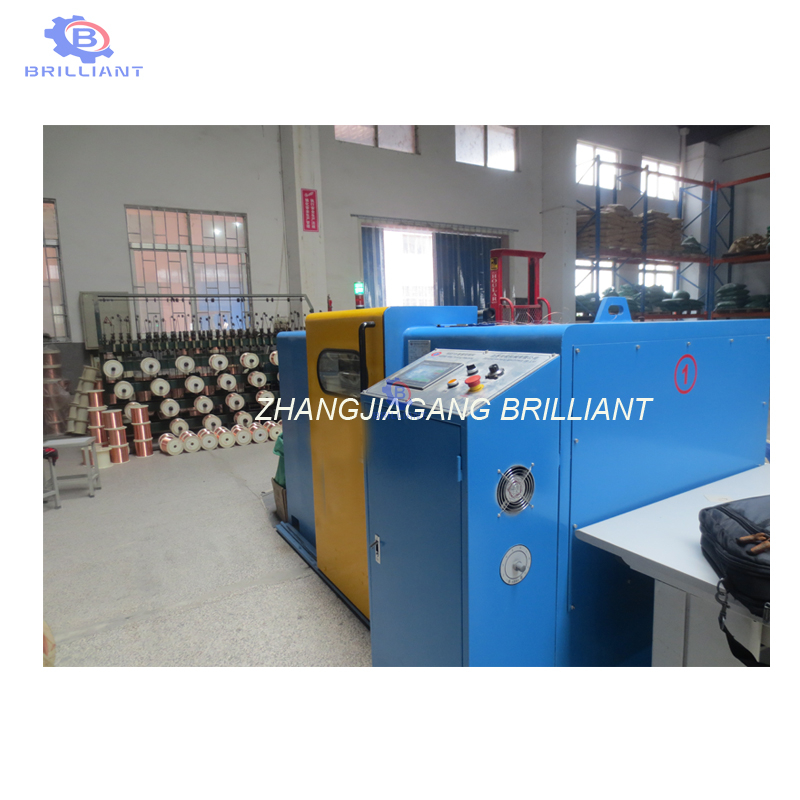

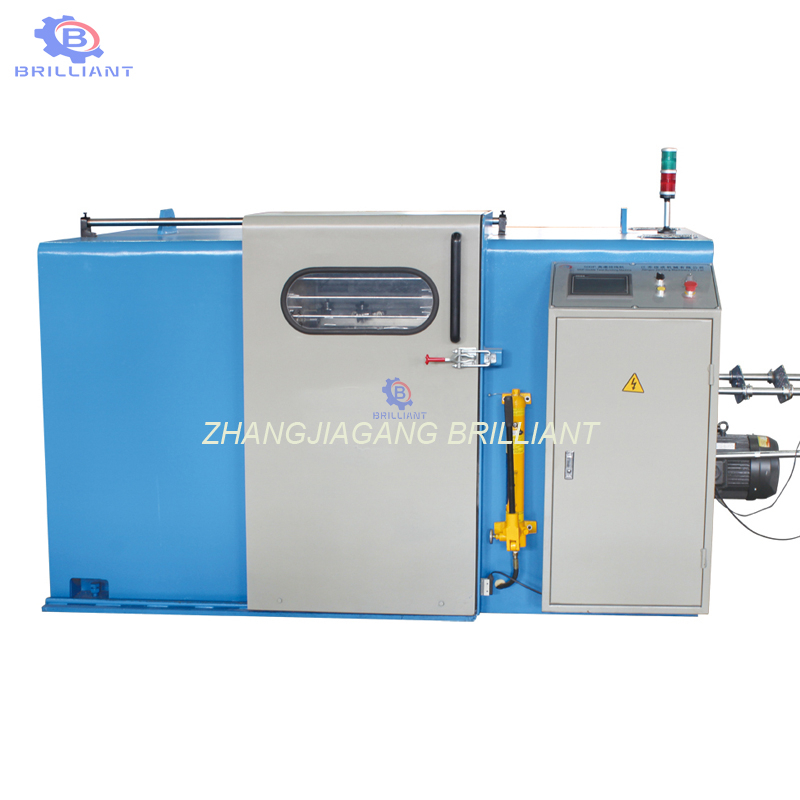

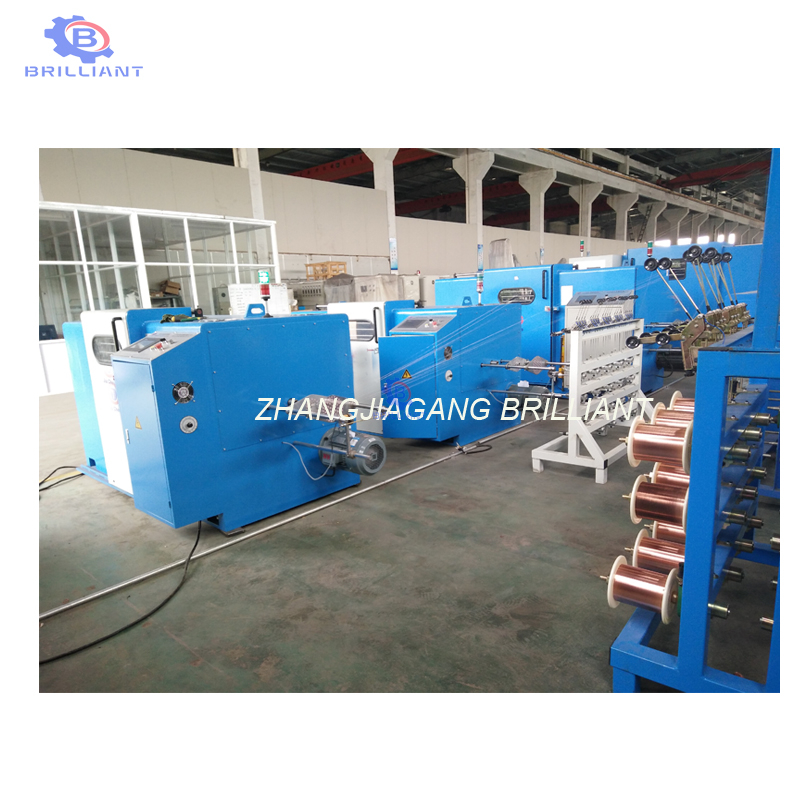

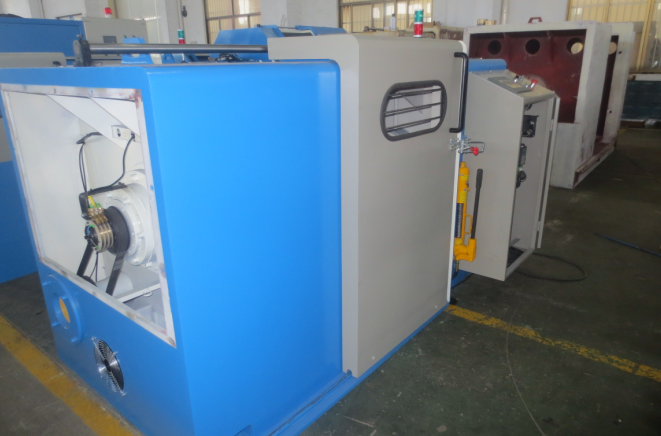

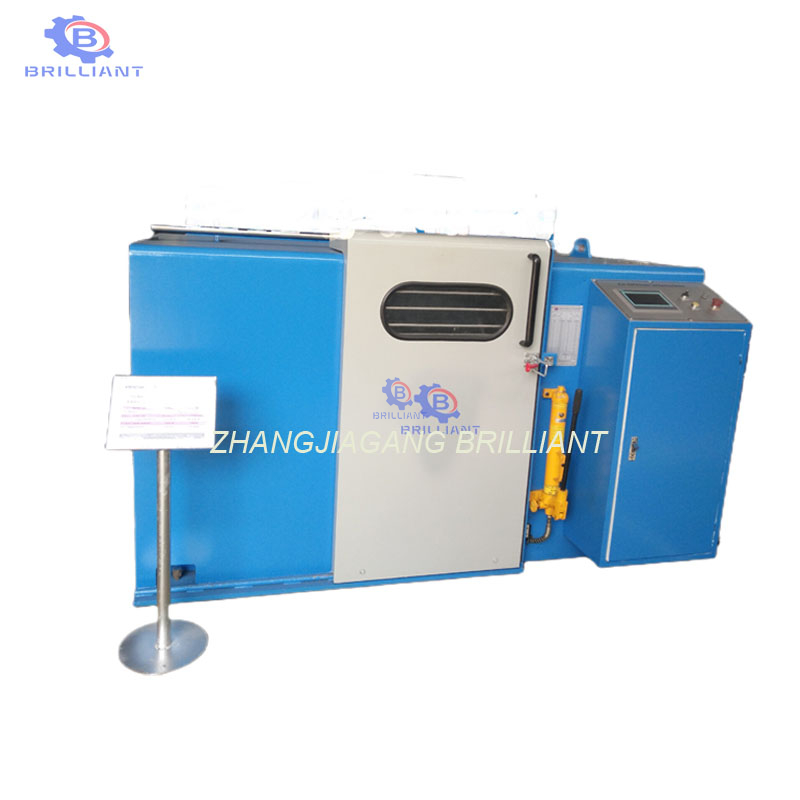

Product name: | High Speed Copper Wire Double Twist Bunching Machine |
Supply type: | Make-to-Order |
Suitbale raw material: | intermediate copper wire |

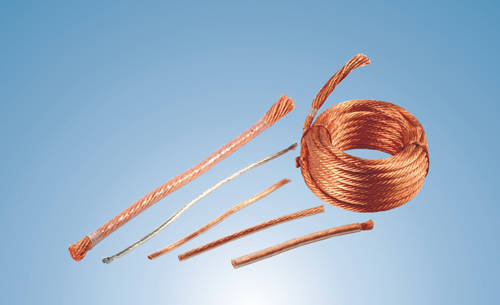

Application | It is used to multi strands fine copper wire to be one core. |
Color: | Blue |
MOQ: | 1set |
Delivery time: | 60Working days after receiving the deposit |
Place of Delivery: | Shanghai Port |
Trade Term: | FOB/CFR/CIF/LC |
Term of Payment: | 30%deposit,the rest by T/T before shipping |
Packing: | 1. in PE non-shrinking polybag 2. Export wooden base or case packing |
| Features: | 1. High rotate speed, main shaft is lubricated by thin oil, cool warning if oil not enough, which can lower the temperature and the noise, extend the life of the machine. 2. The wire goes from bow belt to idler pulley of main shaft directly, which can reduce scratch and keep round cross section. 3. Magnetic power clutch auto track and control taking up tension, making the tension of taking up steadily. |

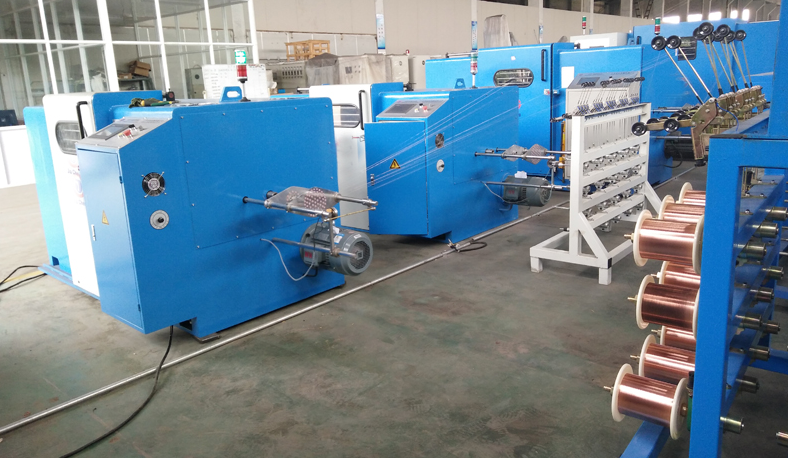

Detailed picture:
Drawing
Annealing
Twisting

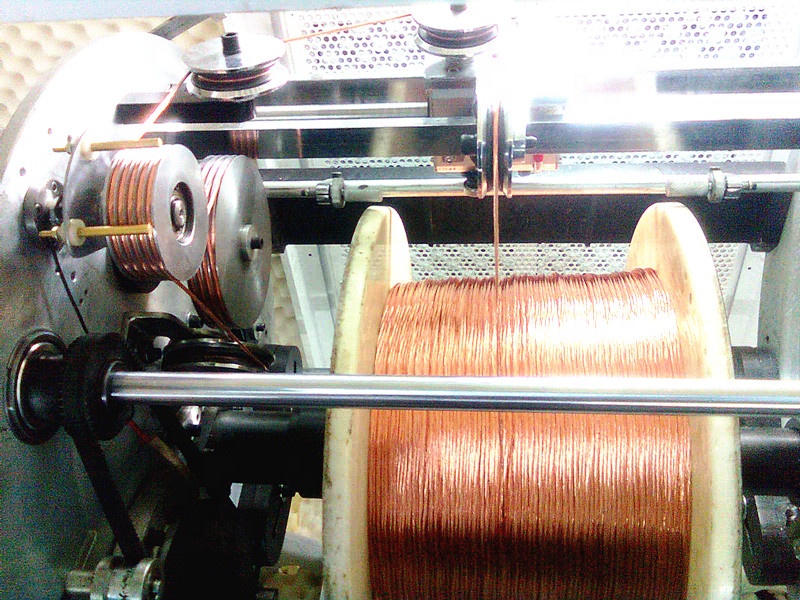

Take-up system | Machine type | 300P | 500P | 500P/B | 650P | 800P |
| Use | For bunching bare copper, tinned wire, enameled wire | ||||

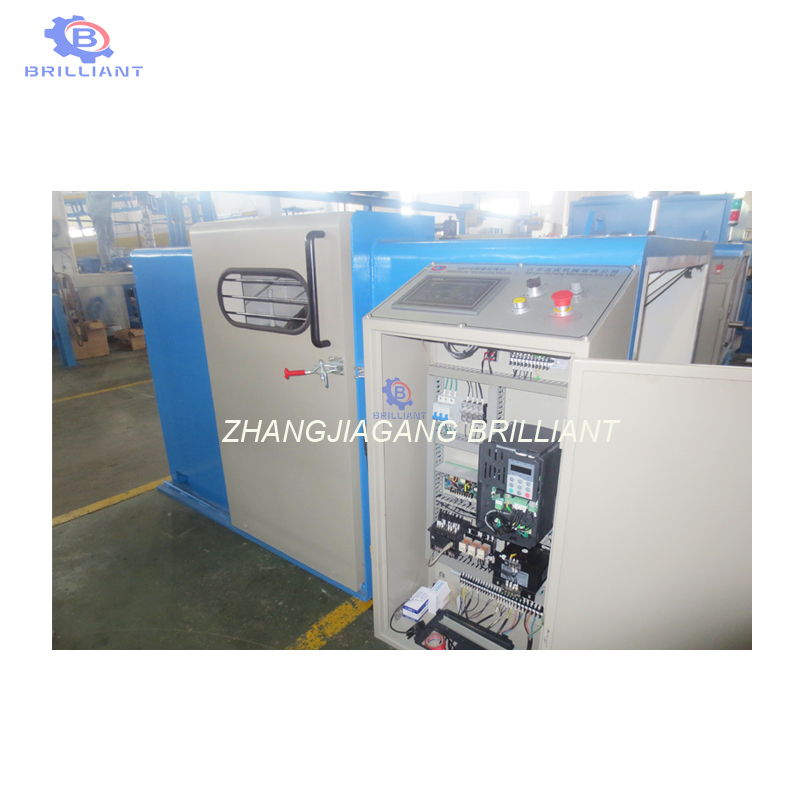

| Control type | PLC+HMI+Inverter control | ||||
| Section area((mm²) | 0.035～0.45 | 0.05～2.50 | 0.05～4.00 | 0.18～6.00 | 2.50～16.00 |
| Copper wire dia.(mm) | Ф0.05～Ф0.25 | Ф0.10～Ф0.45 | Ф0.10～Ф0.52 | Ф0.18～Ф1.00 | Ф0.50～Ф1.20 |
| Twisting pitch(mm) | 2.00～17.17 | 6.30～50.40 | 6.30～65.00 | 11.61～66.03 | 22.51～152.32 |
| Twisting direction | S or Z | ||||
| Take-up tension | tension controlled by magnetic clutch | ||||
| Max main shaft speed | 3000r/min | 3000r/min | 2500r/min | 2000r/min | 1200r/min |
| Traversing type | Transverse and distance can be adjusted by bearing transverse | ||||
| loading&unloading type | Hydraulic type | ||||
| Max bobbin dia. | Ф300 | Ф500 | Ф500 | Ф630 | Ф800 |
| Auto stop unit | While reach setting length, inside outside wire break, or other error auto stops | ||||
| Brake | Magnetic brake | ||||
| Motor power(KW) | 4 | 5.5 | 5.5 | 7.5 | 11 |
